In order to facilitate user operation and use, our company provides fully automatic measuring instruments to achieve accurate measurement of cold and heat.
This product has the characteristics of beautiful appearance, easy installation, accurate measurement, stable operation, strong anti pollution and anti-corrosion ability, long service life, small pressure loss, and economic practicality.
Applied in cold and heat metering facilities such as central heating, central air conditioning, and cold and hot combined supply.
Equipment Composition
This instrument mainly consists of paired temperature sensors, flow sensors, and integrators.
Pairing temperature sensors to measure the temperature of incoming and outgoing water;
The flow sensor measures parameters such as flow rate, instantaneous flow rate, and cumulative flow rate of cold and hot water flowing through the pipeline through time difference;
These two data points are collected and sent to the integrator, which calculates the amount of heat and cold used and displays it.
Integrator

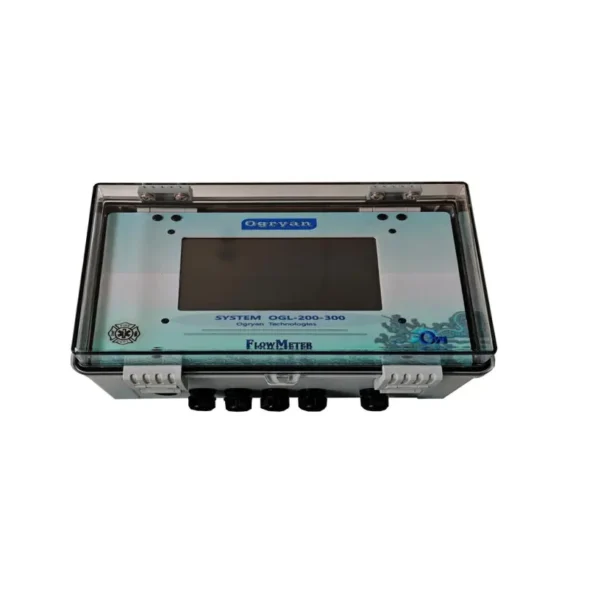

The control center of the flowmeter receives and displays various data transmitted by flow sensors and temperature sensors, and calculates them. The Ogryan energy meter is an energy meter that integrates multiple functions, operation, and display,
Can be used for heating or cooling metering.
1. The protection level of the energy meter control box shall not be lower than IP56;
2. 7-inch touch screen display, real-time display of flow rate, instantaneous cooling/heating, supply water temperature, return water temperature and other parameters;
3. Equipped with remote communication, easy to operate and maintain.
Product parameters
measurement accuracy
1%
Working power supply
220VAC/8-36VDC
power consumptio n
Working current 50mA
Measurement period
500ms(2 times per second, 128 sets of data collected per cycle)
Maximum flow rate
32m/s(flow velocity resolution 0.001m/s)
display
The control box is equipped with a color touch screen of no less than 7 inches
operate
Direct operation on the display screen
INPUT
3-channel 4-20mA analog input with an accuracy of 0.1% can input signals such as pressure, liquid level, temperature, etc; 2-channel three wire PT100 platinum resistor
signal output
Multiple output modes such as RS485
The built-in data storage (SD card) can store time, instantaneous traffic, cumulative traffic, signal status, etc. The data can be imported into the computer through dedicated software for easy statistics and management. Communication protocol: MODBUS protocol
Data Storage
recording time
Automatically remember the previous 512 days, 128 months, and 10 years of cumulative positive/negative/net traffic
Memory
Automatically remembers the first 30 power on/off times and flow rate, and can achieve automatic or manual replenishment of flow rate, read out through MODBUS protocol
protection grade
Host IP65
