Product parameters
Working power supply
AC220V or DC24V
power consumption
<30W
accuracy class
±0.5%
signal output
4-20mA current signal output
measuring range
0.2-12m/s
Applicable size
DN10-DN2000mm
material
Carbon steel, stainless steel
nominal pressure
0.6~4.0MPa
Communication output
Modbus RS485 communication
Lining material
Polytetrafluoroethylene (F4), chloroprene rubber, polyurethane, perfluoroalkoxy(F46), PFA
medium temperature
-20 to 140℃
Range ratio
1: 20 customizable
Installation method
Flange installation/threaded installation, temperature sensor with protective sleeve
protection grade
IP65 or higher
Maximum heat reading
99999999999(ten digits)Mwh
Applicable Medium
Any conductive liquid

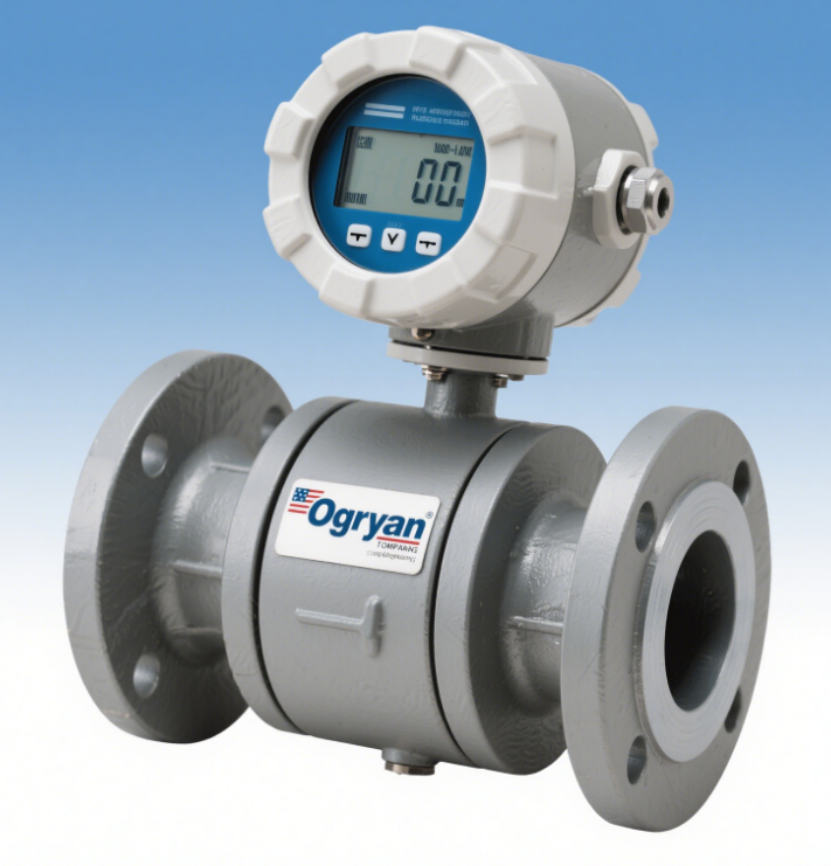

Ogryan electromagnetic flowmeter
Product Features
The electromagnetic flowmeter is based on Faraday’s law of electromagnetic induction. The electromagnetic coils at its upper and lower ends will generate a constant electromagnetic field.
When a conductive medium flows through, an induced voltage is generated between the two coils and electrodes. By converting the voltage, the current flow rate of the electromagnetic flowmeter medium can be obtained.
Suitable for measuring various conductive liquids; For example, conductive liquids such as water, acid, alkali, etc.
